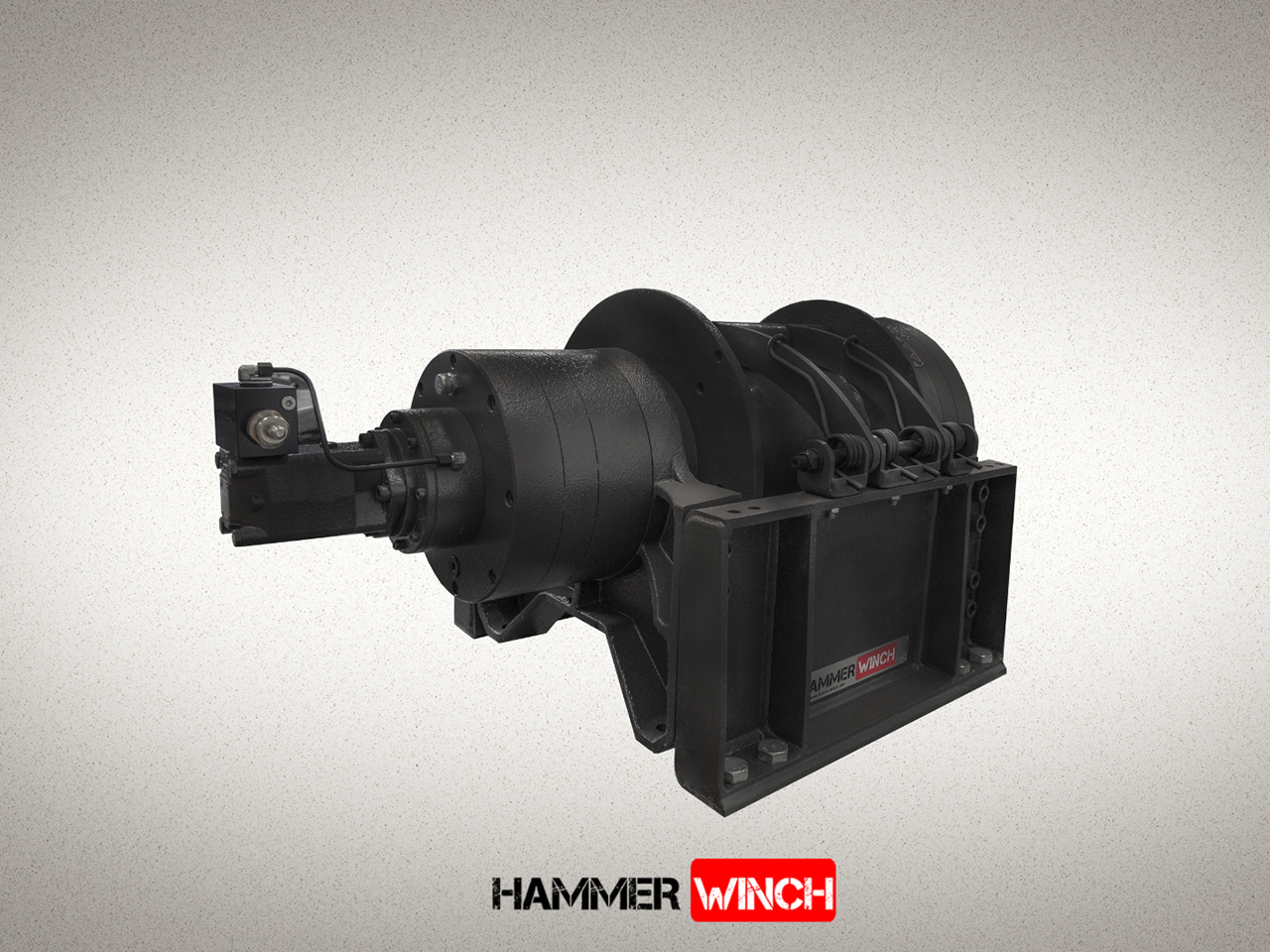

HMW 25.0 PHT - EN Winch
25 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body through the heat treatment and industrial design.
- Light and robust design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pneumatic rope unloading system.
- Easy assembly, compact design and high torque hydromotor.
- Three-stage planetary gear system.
- EN 14492-1 : 2006 Power driven winches supported
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 25.000 kg (55102 Ibs) |
| Max. rope length (m/ft): | 66.2 m (217 ft) |
| Max. rope length for EN (m/ft): | 47.3 m (155 ft) |
| Recommended wire rope (mm/in): | 24 mm 2160 Mpa Compact |
| Hydromotor (cc/in³): | 125 cc (7.5 in³) |
| Max. pump flow (L/min-gal/min): | 75 L/min (19.8 g/min) |
| Gear ratio: | 114:1 |
| Oil types and capactiy: | 85 W 140 - 2,75 L |
| Max. working pressure (bar/psi): | 210 bar (3045 psi) |
| Winch (kg/Ibs): | 583 kg (1285 lbs) |
| Cable Tensioner (kg/Ibs): | 9 kg (19 lbs) |
PN HMW 25.0 PHT/P - EN Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 25.0 PHT EN Hydraulic Winch
